Product Description

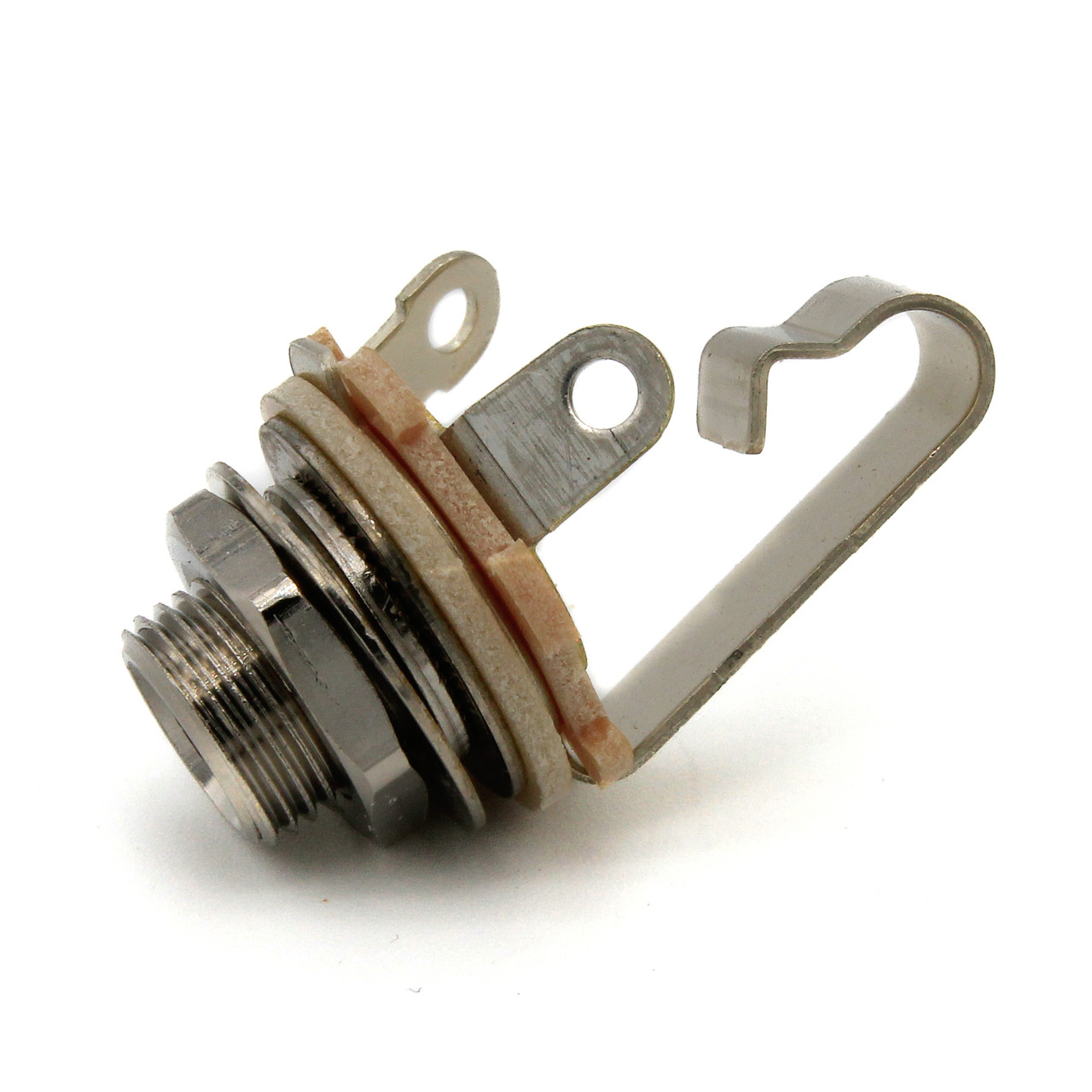

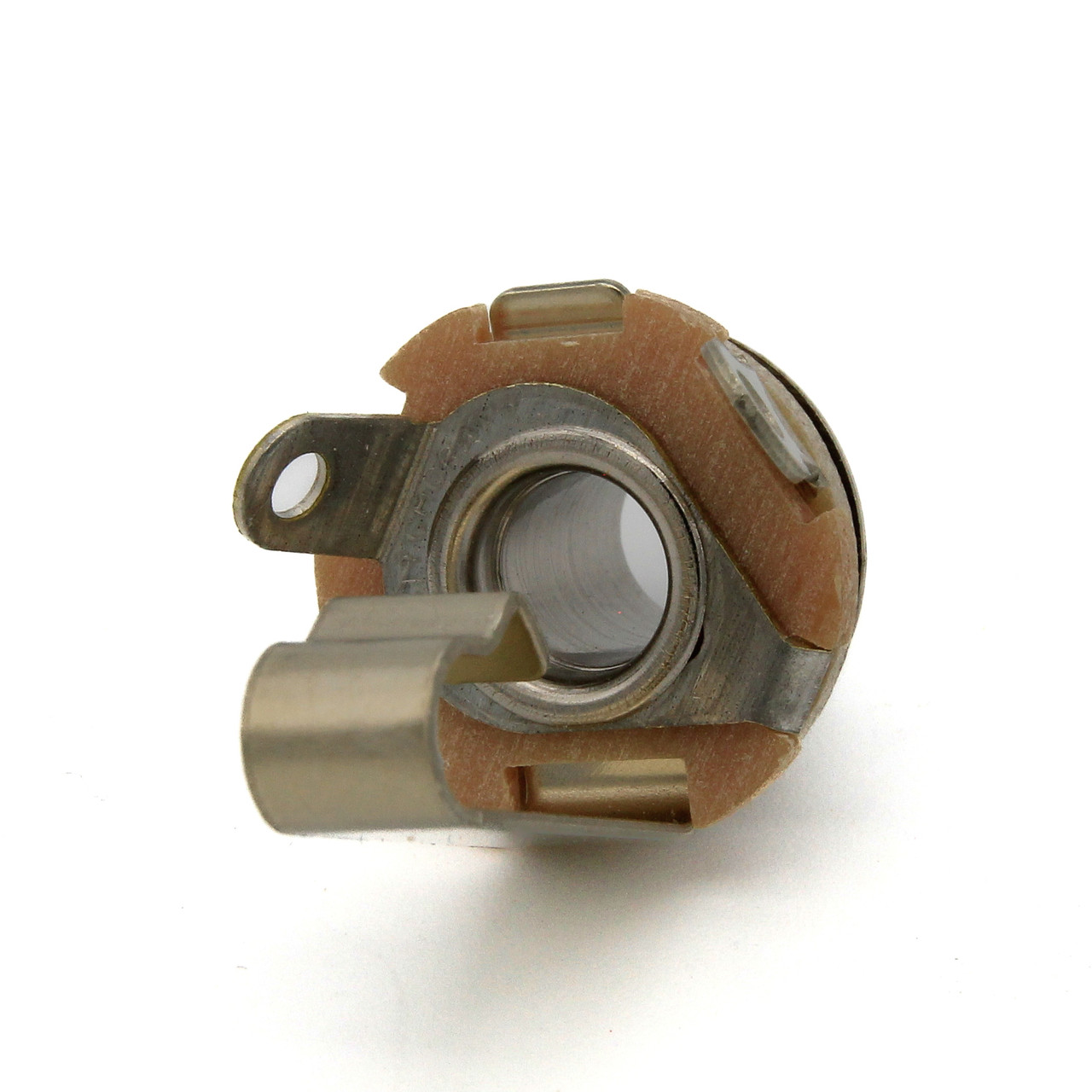

Switchcraft #11. Rugged, USA made, heavy duty open-frame 1/4" jack. Great feeling jack and an industry standard in pedals, guitars, amps, and tons of other quality gear made over the past few decades.
Mono: tip and sleeve terminals
Solder Lugs.
Electrical:
Contact Resistance: 0.03 Ohms
Dielectric Withstanding Voltage: 500 Volts
Insulation Resistance: 10000 MOhms
Voltage Rating: 25 Volts
Current Rating: 1 Amps
Mechanical:
Life Cycle: 10,000 Cycles
Operating Force: 7 lbs
Coupling Locking Style: Threaded
Panel Thickness: 0.156 in
RoHS compliant.
